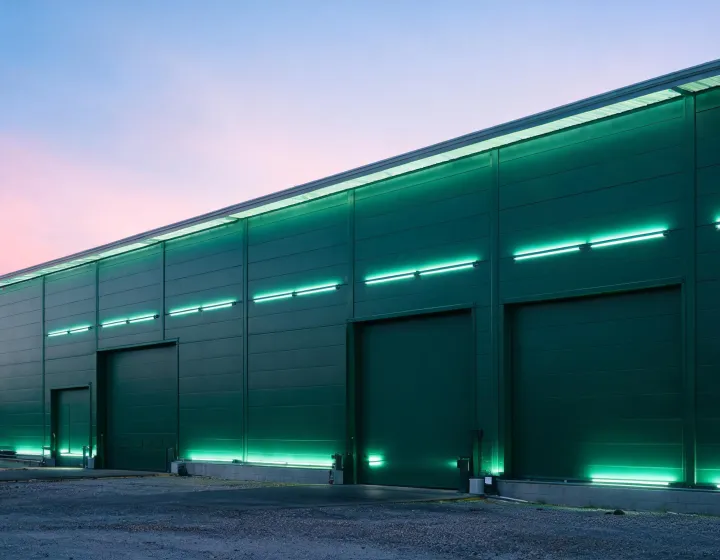

Kingspan insulated metal panels installed on a commercial warehouse facade

QuadCore+ Building Envelopes

Kingspan Insulated Panels — Advanced Building Envelope Systems

Specification teams choose Kingspan when wall and roof assemblies must deliver documented R-value, controlled thermal bridging, and third-party fire resistance rating pathways without thickening the structure beyond the design grid. From cold storage to mid-rise commercial shells, our PIR and mineral wool cores keep air permeability and moisture vapor transmission within published envelope limits.

Explore the Technology Request Technical Specs

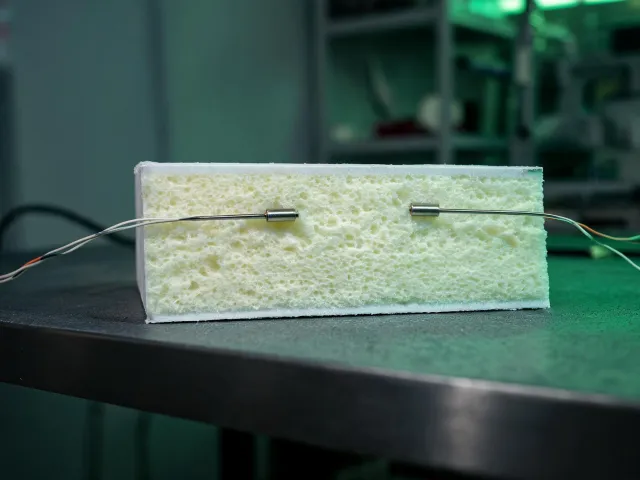

Cross section of QuadCore insulated panel foam cell structure in lab

Performance Architecture

Why Envelope Teams Specify Kingspan Panels

Every Kingspan system ships with engineering notes that help facade consultants and procurement managers balance thermal conductivity, fire resistance rating, and compressive strength before cladding details freeze.

01

QuadCore+ thermal density

Cell structures engineered for R-values up to R-44 in standard thicknesses so net-zero ready buildings avoid excessive structural depth.
02

Verified fire & weather pathways

FM Approvals, UL, and BBA testing document fire resistance ratings from 30 to 120 minutes and weather seals for exposed elevations.
03

Air & moisture control

Joint systems target EN 12153 Class 4 air permeability while managing moisture vapor transmission across cold-to-warm interfaces.
04

Acoustic attenuation options

Composite wall assemblies achieve up to 42 dB(Rw) where logistics docks and data halls share party walls with occupied zones.
05

Global mill consistency

Twenty-four plants across North America, Europe, Middle East, and Asia-Pacific keep panel quality aligned with regional specification support.

Technical Snapshot

Panel Performance by Application Tab

Switch between wall, roof, and cold-store cores to compare thermal conductivity, fire resistance rating, and wind load guidance. Confirm project-specific data sheets before submittal.

Parameter	Typical Range	Notes for Specifiers
R-value	R-16 to R-44	Depends on QuadCore+ or mineral wool thickness
Thermal conductivity	0.018–0.022 W/m·K	Lab lambda at mean 10°C; verify declared values
Fire resistance rating	30–120 minutes	System tested with fasteners and seals
Air permeability	EN 12153 Class 4	Joint detailing critical at corners
Acoustic attenuation	Up to 42 dB(Rw)	Composite assemblies with liners

Parameter	Typical Range	Notes for Specifiers
R-value	R-20 to R-40	Standing seam and through-fix families
Wind load rating	Up to 110 MPH design cases	Confirm clip spacing and purlin gauge
Water absorption rate	< 0.5% by volume (core)	Edge seals protect cut panels
Service life expectancy	25–40 years coating systems	Depends on coastal vs inland exposure
Dimensional stability	Low thermal movement joints	Expansion detailing at long runs

Parameter	Typical Range	Notes for Specifiers
R-value	R-28 to R-44	Freezer and chill room envelopes
Moisture vapor transmission	Controlled vapor seals	Critical at door thresholds and floors
Compressive strength	Core crush resistance rated	Protect against racking impacts
Thermal bridging	Minimized at panel joints	Use published psi-values in energy models
Hygiene finishes	Food-grade liner options	Washdown compatible coatings

Markets We Envelope

Industry Applications for Kingspan Systems

From freezer shells to data hall skins, Kingspan panels address thermal bridging, fire resistance rating, and schedule certainty where prefabricated envelopes outperform stick-built insulation stacks.

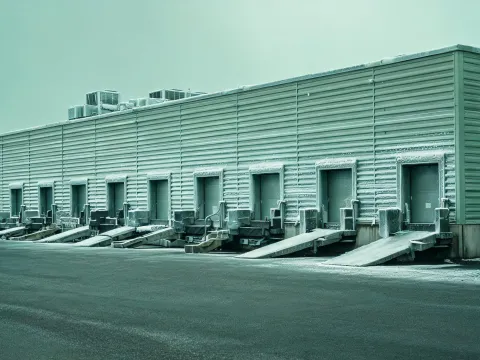

Cold storage warehouse with insulated panel walls

Cold Storage & Food Logistics

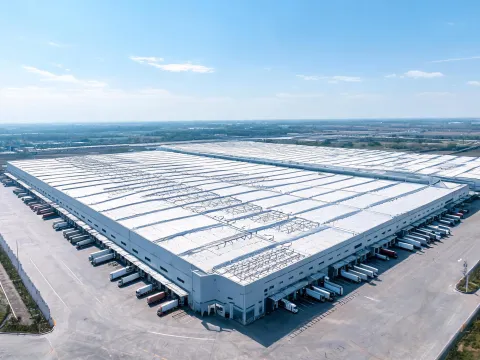

Large logistics distribution center roof panels

Logistics Warehouses

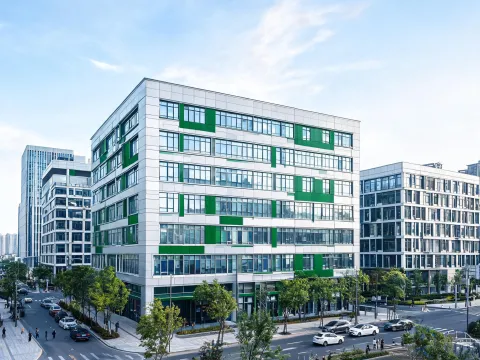

Commercial office building with modern panel facade

Commercial Offices

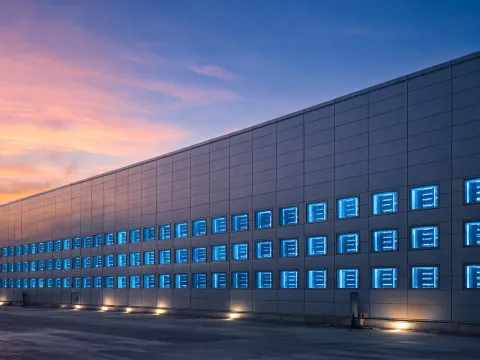

Data center building envelope with insulated cladding

Data Halls & Critical Facilities

Third-Party Credentials

Certifications Specifiers Can Cite

Kingspan systems carry factory and product certifications that support LEED, BREEAM, and insurer-reviewed envelope packages without vague marketing claims.

ISO 9001:2015

Quality management across manufacturing plants.

ISO 14001:2015

Environmental controls tied to Planet Passionate targets.

FM Approvals

Insurer-recognized fire and weather performance.

UL / BBA / CE

UL listing, BBA agrément, and EN 14509 CE marking.

1965 Founded in Kingscourt, Ireland

24 Manufacturing plants worldwide

70 Countries with technical support

10k+ Employees across the network

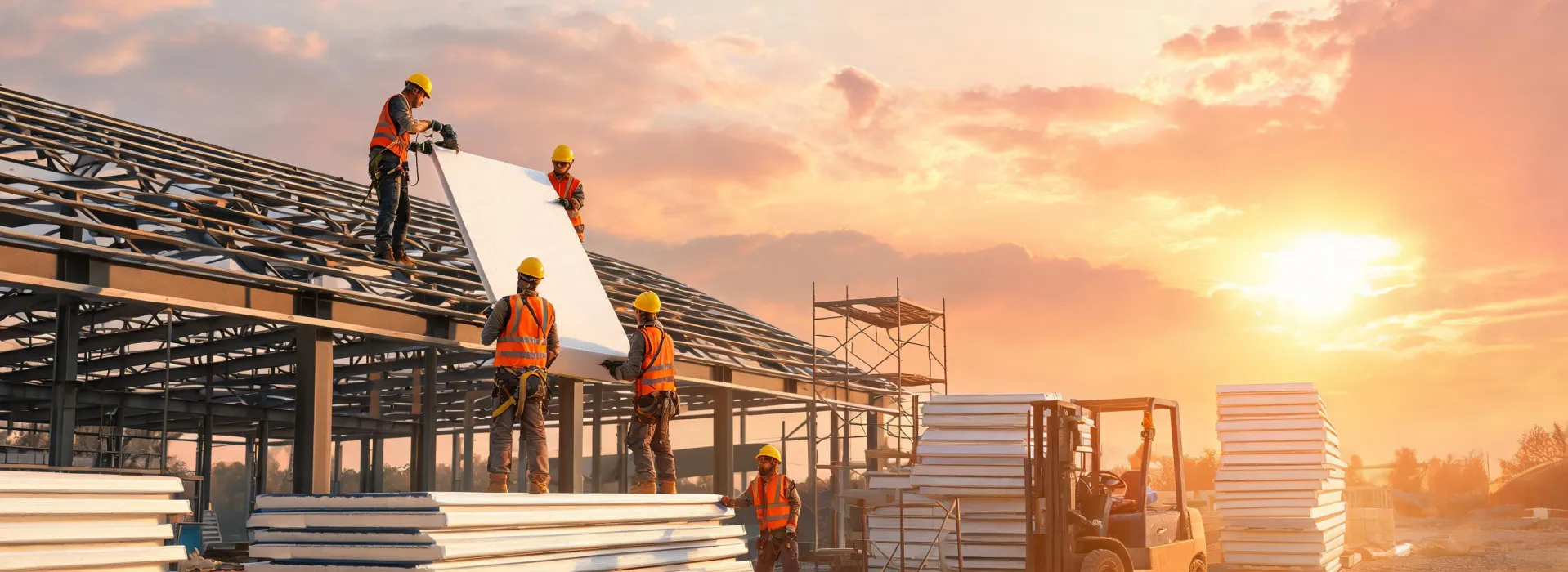

Construction crew installing insulated roof panels

Find Your Solution for the Next Envelope Package

Share thermal targets, fire resistance rating needs, and project timelines. Kingspan specialists respond with data sheets, joint details, and mill availability windows.
